| UT209A | Digital Clamp Multimeters | | | SPECIFICATIONS | Basic Functions | Range | Best Accuracy | | DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.8%+1) | | AC Voltage | 400mV/4V/40V/400V/750V | ±(1.2%+ 3) | | DC current | 40A/400A/1000A | ±(1.5%+5) | AC Current | 40A/400A/1000A | ±(2%+2) | | Resistance | 400W/4kW/40kW/400kW /4MW/40MW | ±(1%+2) | | Temperature (°C) | - 40°C ~ 1000°C | | | Capacitance | 4nF/40nF/400nF/4µF/40µF /100µF | | | Frequency | 10Hz/100Hz/1kHz/10kHz/1MHz/10MHz | ±(0.1%+3) | | Duty Cycle | 0.1% ~ 99,9 % | √ | | Special Functions | | | Auto Ranging | | √ | | Diode | | √ | | Continuity Buzzer | | √ | | True RMS | AC | √ | | Frequency Measurement by Conductor | | √ | | Data Hold | | √ | | Sleep Mode | | √ | | Display Backlight | | √ | | Low Battery Display | | √ | | DC Voltage Measurement | ≥10MW | √ | | Max. Conductor Diameter | 55mm | √ | | Max. Display | 4000 | √ |
| | | GENERAL CHARACTERISTICS | Power | 9V Alkaline Battery | | LCD Size | 47 x 30mm | | Product Colour | Red and Grey | | Product Net Weight | 533g | | Product Size | 286 x 105 x 45mm | | Standard Accessories | Test Lead, Battery, English Manual, Tool Box | | | | | |

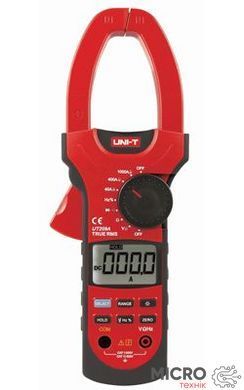

![Струмові кліщі UT209A [постійний струм] 3016421 фото](/content/images/21/244x390l80br40/11289897863156.jpeg "Струмові кліщі UT209A [постійний струм] 3016421 фото")
